The precision guidance component is a type of "one-dimensional action, two-dimensional correction" ballistic correction fuze. Using GPS/BD guidance, duck rudder control and other technologies to real-time correct the artillery trajectory. It also has all the functions of a fuze. It features small equipment change, simple service maintenance, and high cost-effectiveness. It can greatly reduce the use of artillery
Wireless fuze programming enables rapid preparation, with a loading time of up to 2 seconds per round.
Maintains a maximum range close to that of the original projectile, with a range attenuation of ≤10%.
Supports proximity and contact fuse options to adapt to different mission requirements.

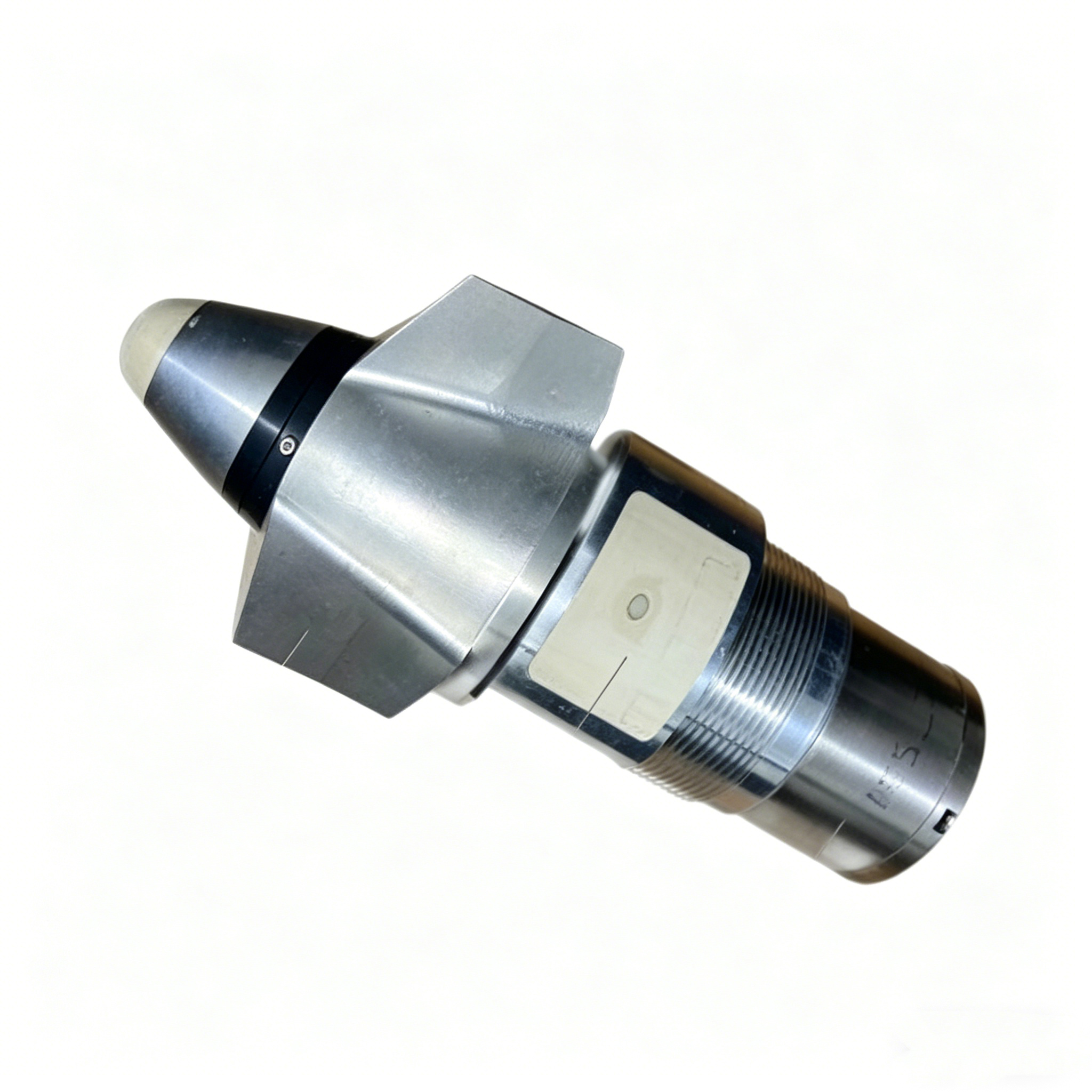

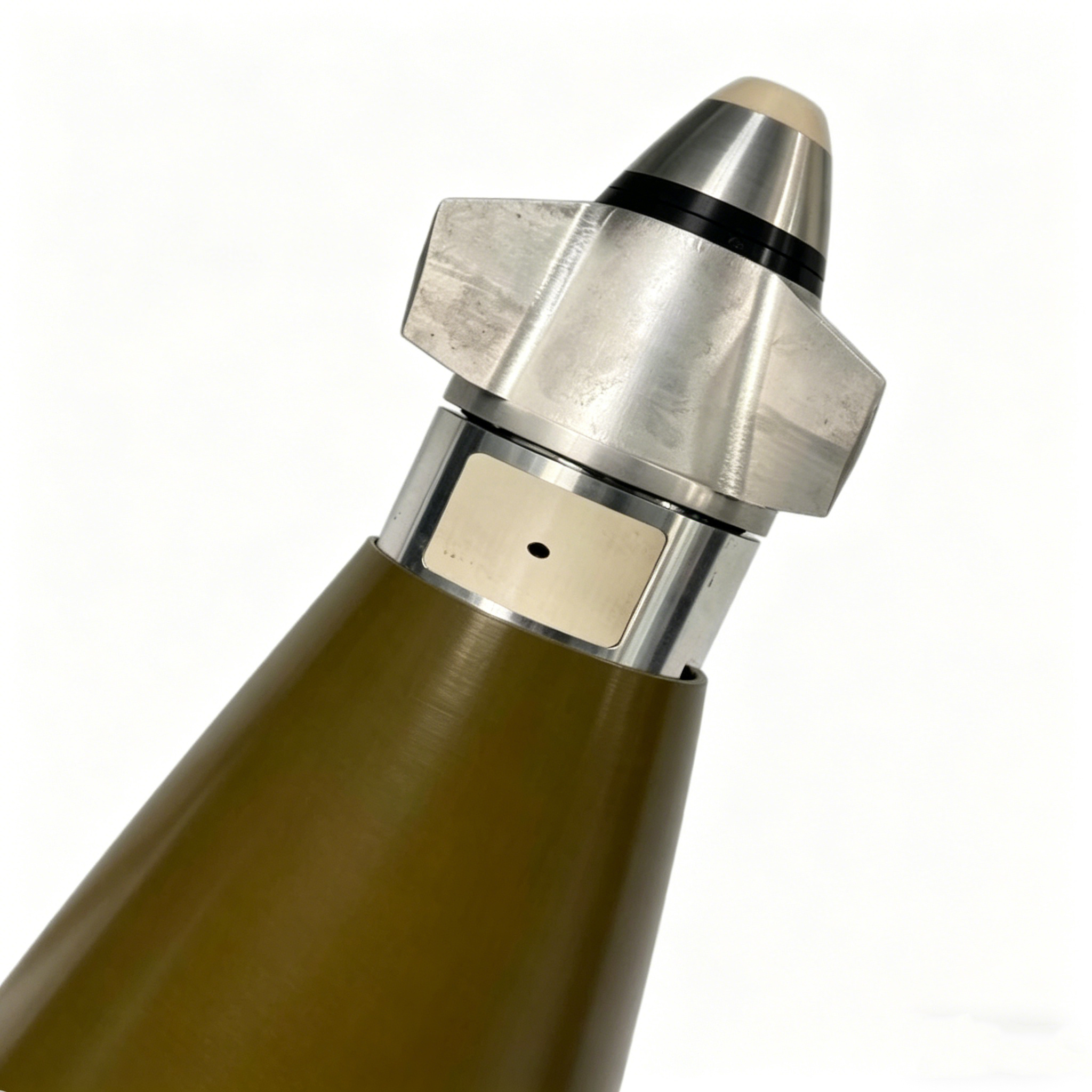

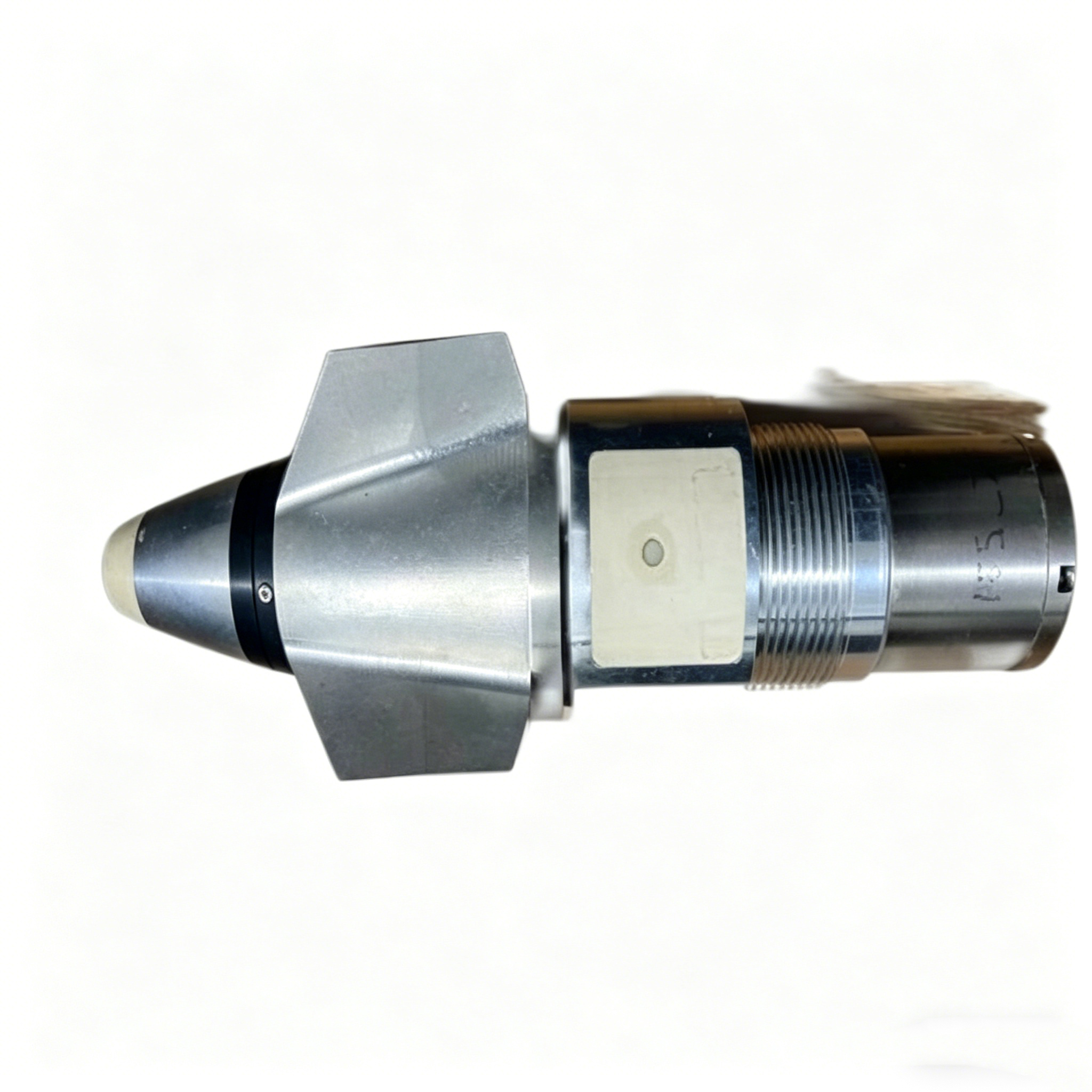

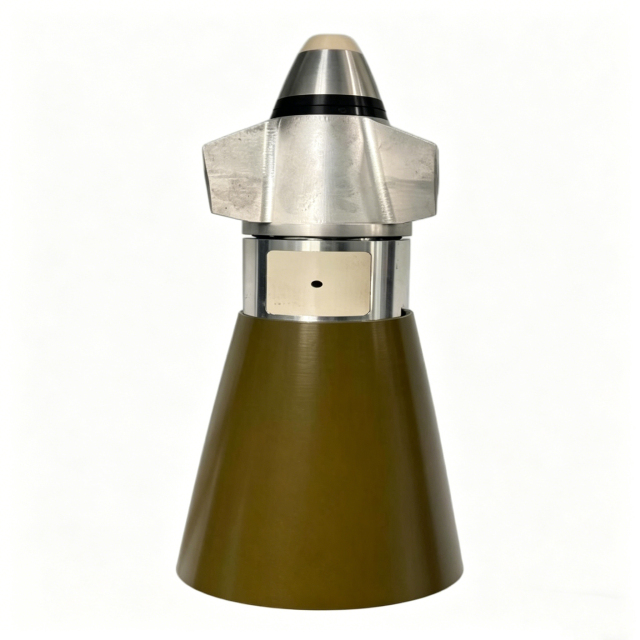

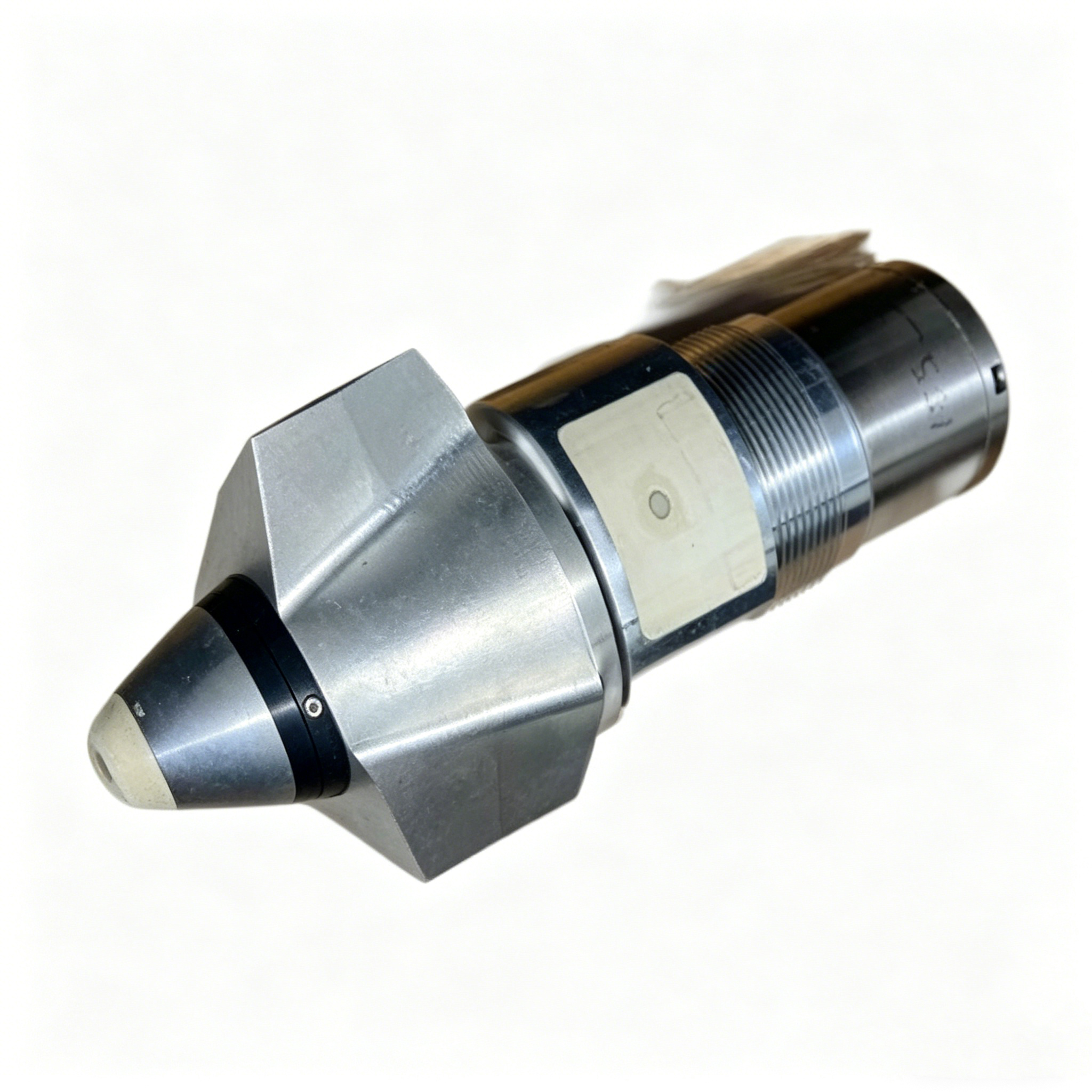

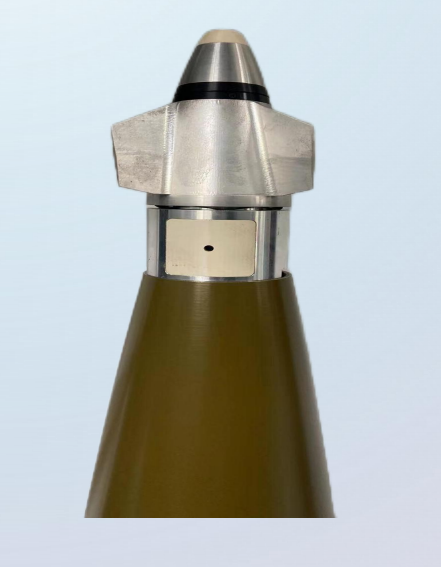

| Product Name | 155mm Shrapnel PGK |
|---|---|
|
Weight |
≤1.5kg |
|
Length |
270mm |
|
Outer-extension length |
≤145mm |
|
Spinning-in depth |
125mm |
|
Accuracy on max range |
(CEP)≤30m |
The PGK is suitable for precision upgrades of conventional artillery systems.
No. It directly replaces the standard fuze and connects via the same interface, requiring minimal modification.
It uses GNSS guidance (GPS/BD-1) combined with ballistic correction control.
Under standard conditions, its circular error probable (CEP) is ≤30 meters.
