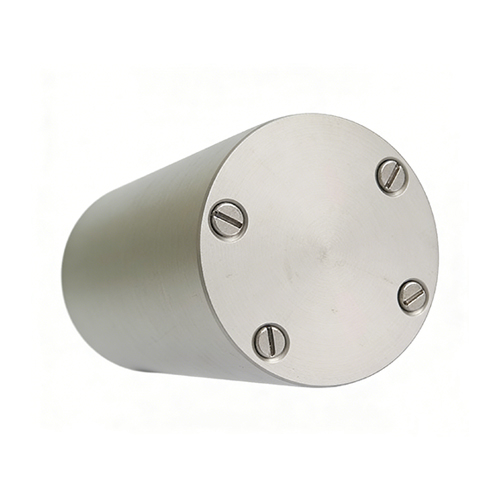

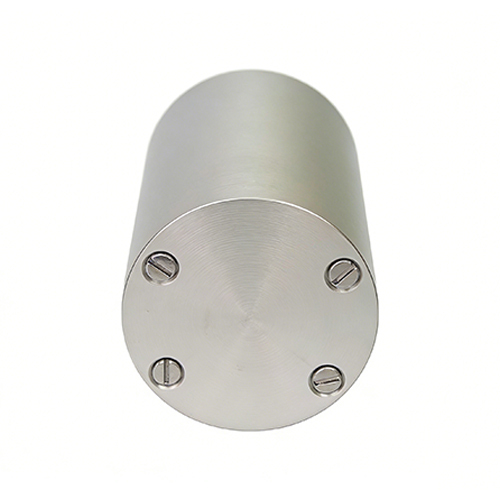

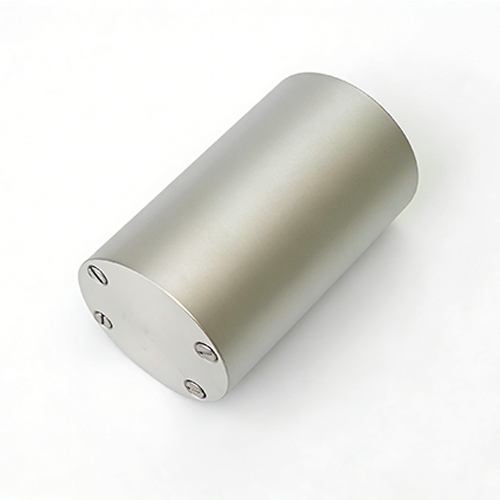

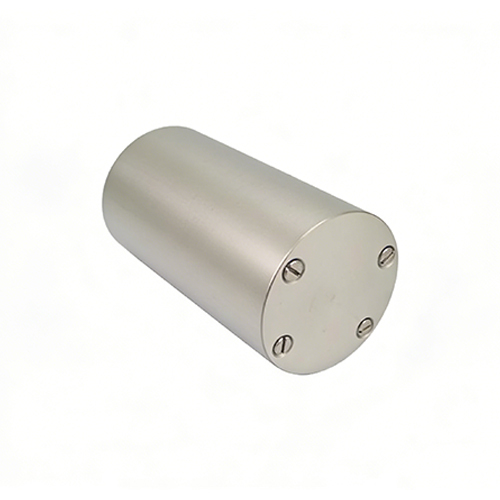

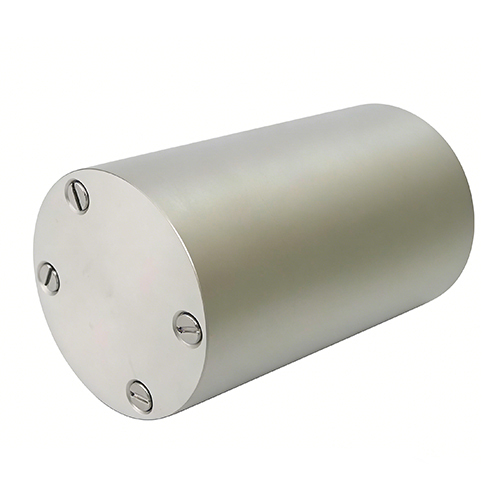

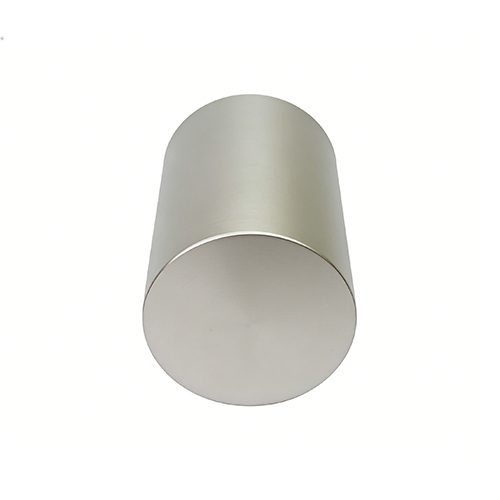

The NANO-24 Micro-Nano Integrated Fiber Optic Gyroscope features a compact, lightweight design and high accuracy, and is specifically engineered for advanced motion sensing and angular velocity measurement in space-constrained platforms. With its stable performance, low power consumption, and reliable RS422 output, it is an ideal solution for high-precision control, navigation, and stabilization systems.
The NANO-24 is a micro-nano integrated fiber-optic gyroscope developed specifically for applications requiring high precision, compact size, and reliable stability. With its compact dimensions (Φ24 mm × 40 mm) and lightweight design (weighing no more than 30 g), it can be easily integrated into compact platforms without significantly increasing the payload burden.
This product is designed for professional environments and features an RS422 output interface, with an operating voltage of 5±0.15 V and a power consumption of no more than 1.5 W.
Thanks to its micro-nano integrated structure, the NANO-24 is ideally suited for platforms with stringent space and weight constraints.
With full-temperature-range bias stability of ≤1°/h (1σ) and a random walk coefficient of 0.1°/√h, the product delivers reliable sensing performance.
Supporting RS422 communication, low power consumption, and robust environmental adaptability, it is suitable for professional navigation, stabilization, and control systems.
Its scale factor linearity is within 500 ppm, helping ensure measurement consistency. Meanwhile, its operating temperature range of -45°C to +70°C and vibration resistance of 8g (10Hz to 2000Hz) make it well suited for harsh and demanding operating conditions.
The NANO-24 is designed for advanced systems requiring precise angular velocity measurement, dependable signal output, and stable control support in dynamic environments.
| Product Name | NANO-24 Micro-Nano Integrated Fiber Optic Gyroscope |
|---|---|
| Output | RS422 |
| Power Consumption | ≤1.5W |
| Power Supply | 5±0.15V |
| Random Walk Coefficient | 0.1°/√h |
| Full Temperature Range Bias Stability | ≤1°/h (1σ) |
| Dynamic Range | ≥400°/s |
| Scale Factor Linearity | ≤500PPm |
| Bandwidth | 300Hz |
| Operating Temperature | -45°C ~ +70°C |
| Vibration | 8g; 10Hz ~ 2000Hz |
| Size | Φ24mm × 40mm |
| Weight | ≤30g |
The NANO-24 is suitable for a wide range of advanced systems requiring precise angular velocity measurement and stable control support.
Yes. With dimensions of just Φ24 mm × 40 mm and a weight of no more than 30 g, it is ideal for integration into compact and lightweight systems.
Yes. The product is designed to operate within a temperature range of -45°C to +70°C and can withstand vibrations of up to 8g within a frequency range of 10Hz to 2000Hz.
Its low random walk coefficient, full-temperature-range bias stability, strong scale factor linearity, and wide dynamic range make it suitable for precision applications.
