Name: Infrared/Visible Light Composite Seeker
Brand: skycore
Availability: InStock
Rating: 5 (1 reviews)

Description

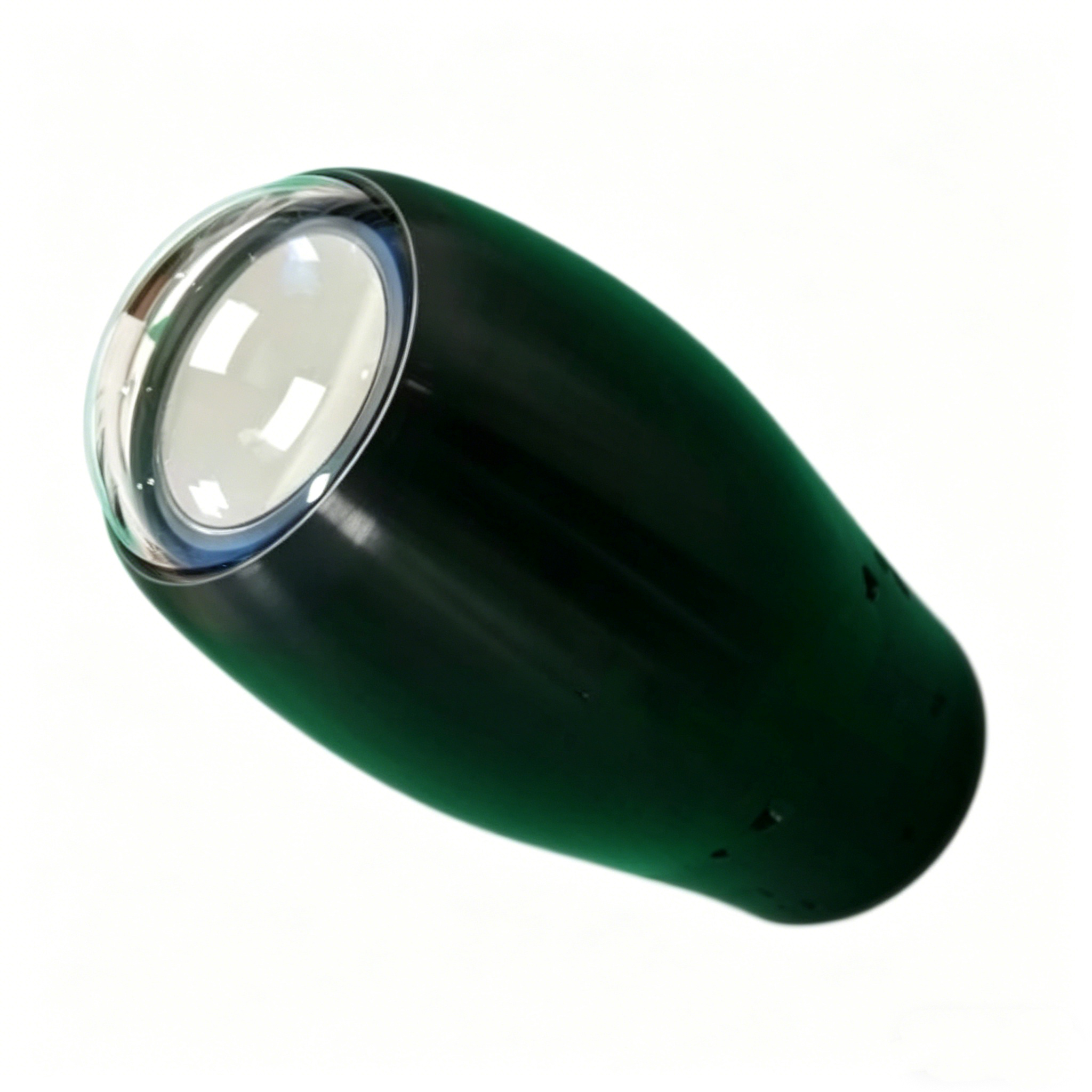

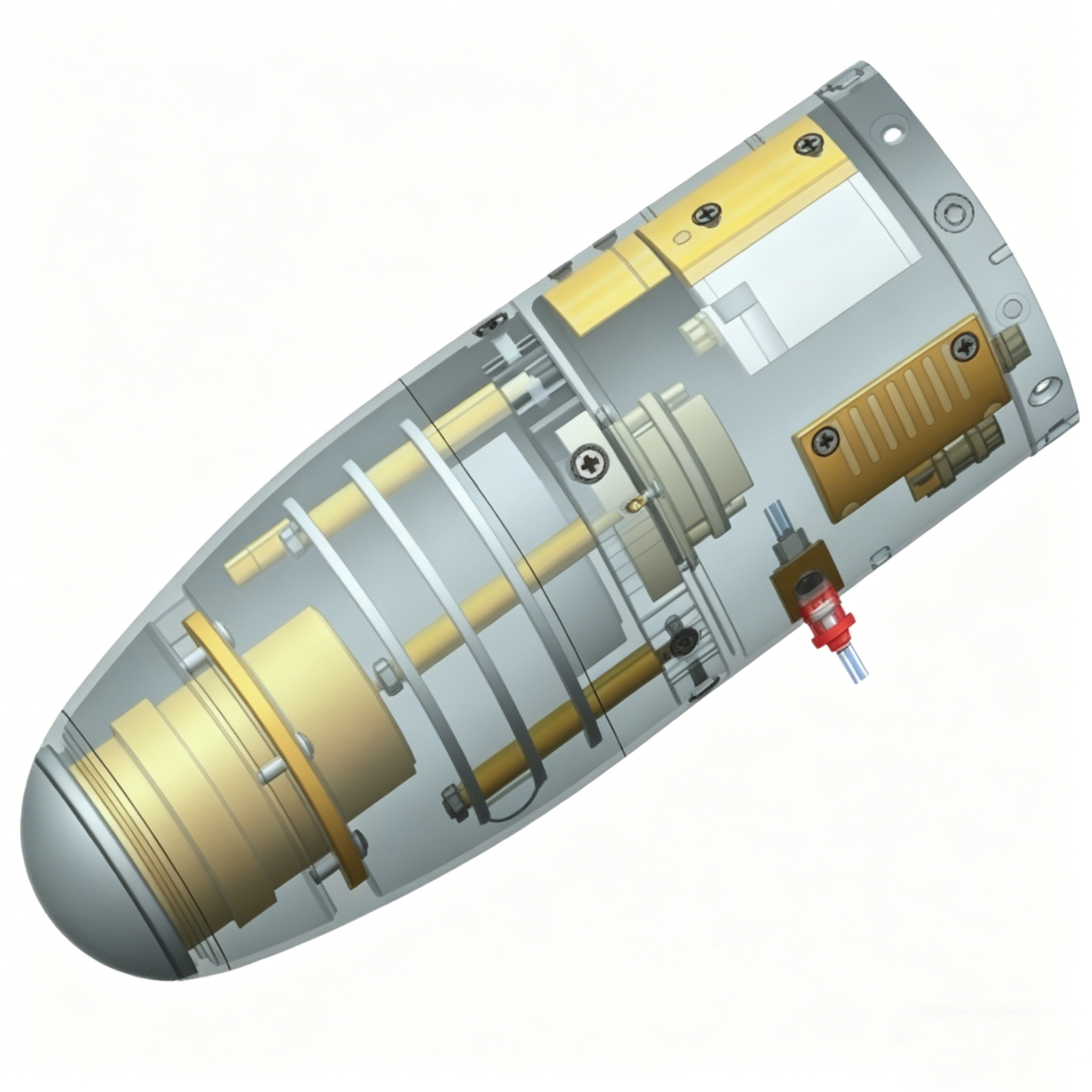

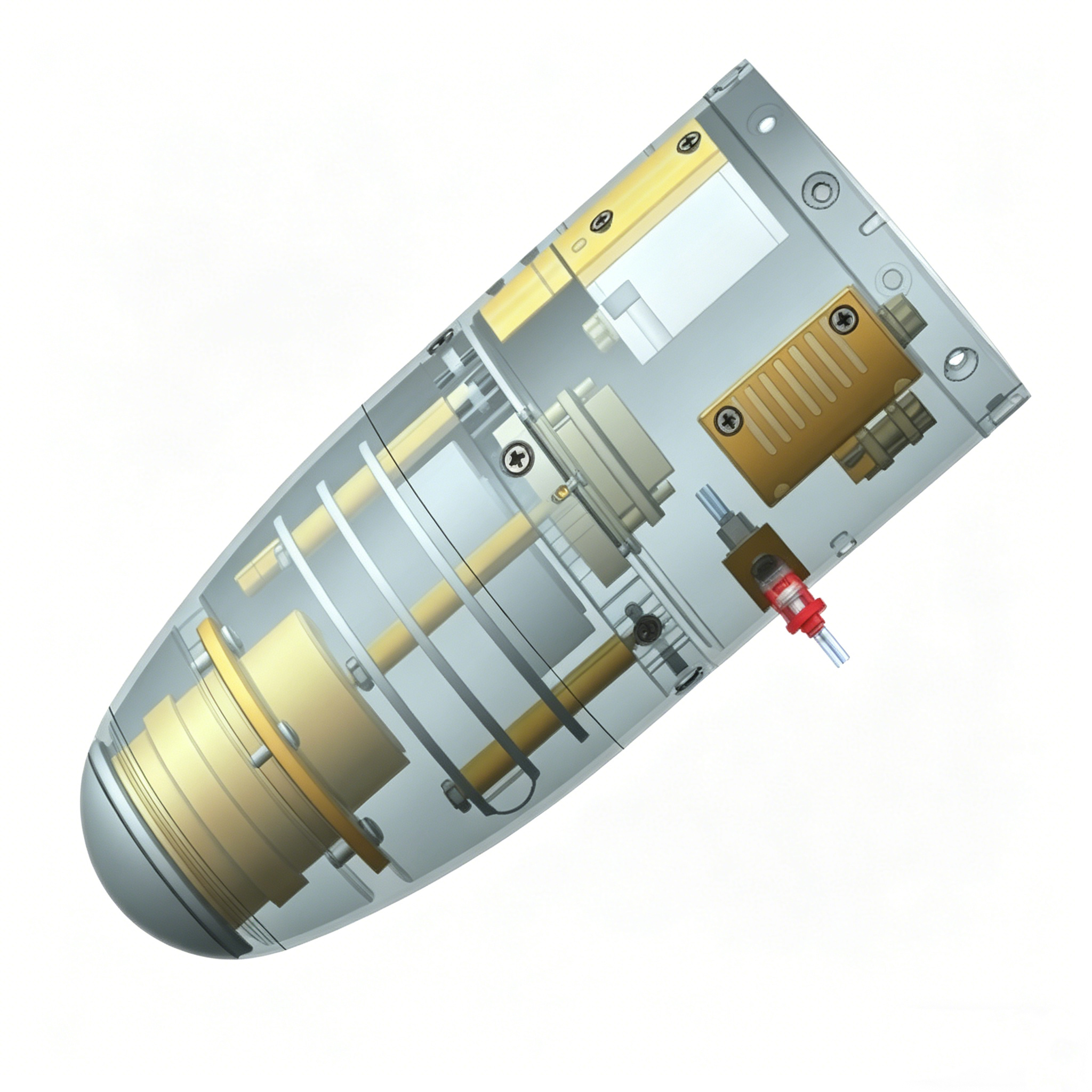

Infrared/Visible Light Composite Seeker

This product adopts Gyro stabilized 2-axis platform and high definition IR image. With IR imagine guidance the munition is capable of achieving fire-and-forget function, which gives the munition platform(soldier, UAV, LAV etc.) better survivability，maneuverability and flexibility. It can be customized and developed according to the munition.

Highly integrated multi-function design
Reduced system size and wiring complexity Improved reliability and environmental adaptability
Optimized cost-to-performance ratio

Integrated Guidance and Control Architecture

Unlike traditional distributed systems, the TX-10 adopts a fully integrated design that combines sensing, navigation, and control functions into a unified module. This architecture reduces interconnection complexity and improves system robustness.

With embedded guidance algorithms and real-time data processing capability, the module supports efficient target tracking and guidance execution.

Laser Detection Capability

Equipped with a laser detector featuring a linear field of view of -10° to +10° and detection field of view of -18° to +18°, with a detection range of ≥3 km and angle measurement accuracy of 3 mrad.

High-Performance Gyroscope

Gyro measurement range of ±400°/s with zero bias ≤0.2°/h and excellent stability, ensuring accurate angular motion sensing.

Precision Accelerometer

Supports X-axis range of ±200 g and YZ-axis range of ±40 g, with low zero bias and high stability for reliable motion detection.

Designed for Reliable Guidance Performance

The TX-10 module is optimized for real-time guidance applications requiring accurate sensing and fast response. Its integrated IMU and navigation system ensure consistent performance even under dynamic conditions.

With a bandwidth of up to 100 Hz for both gyroscope and accelerometer, the system enables responsive control and stable tracking.

Specifications

Laser Detector
Product Name	TX-10 Integrated Guidance Module
Linear FOV	-10° ~ +10°
Detection FOV	-18° ~ +18°
Detection Range	≥3 km
Angle Measurement Accuracy	3 mrad (1σ)
Gyroscope
Measurement Range	-400°/s ~ +400°/s
Zero Bias	≤0.2°/h
Zero Stability	≤0.2°/h
Scale Factor Nonlinearity	≤1000 ppm
Bandwidth	100 Hz
Accelerometer
X-axis Range	-200 g ~ +200 g
YZ-axis Range	40 g ~ +40 g
Zero Bias	≤0.2 mg
Zero Stability	≤0.2 mg
Bandwidth	100 Hz
Navigation & Alignment
Alignment Attitude Error	≤0.2°
Position Accuracy (100 s)	≤200 m
Attitude Accuracy (100 s)	≤0.4°

Application Scenarios

The TX-10 integrated guidance module is suitable for systems requiring compact and reliable guidance and control solutions.

Integrated guidance systems for unmanned platforms Navigation and control modules Compact multi-sensor guidance units Systems requiring high integration and reliability

FAQ

1.What is the detection range of the laser module?

The detection range is ≥3 km.

2. What makes the TX-10 different from traditional systems?

It integrates multiple subsystems into a single module, reducing complexity and improving reliability.

3. What sensors are included?

It includes a laser detector, gyroscope, accelerometer, and navigation computation unit.
