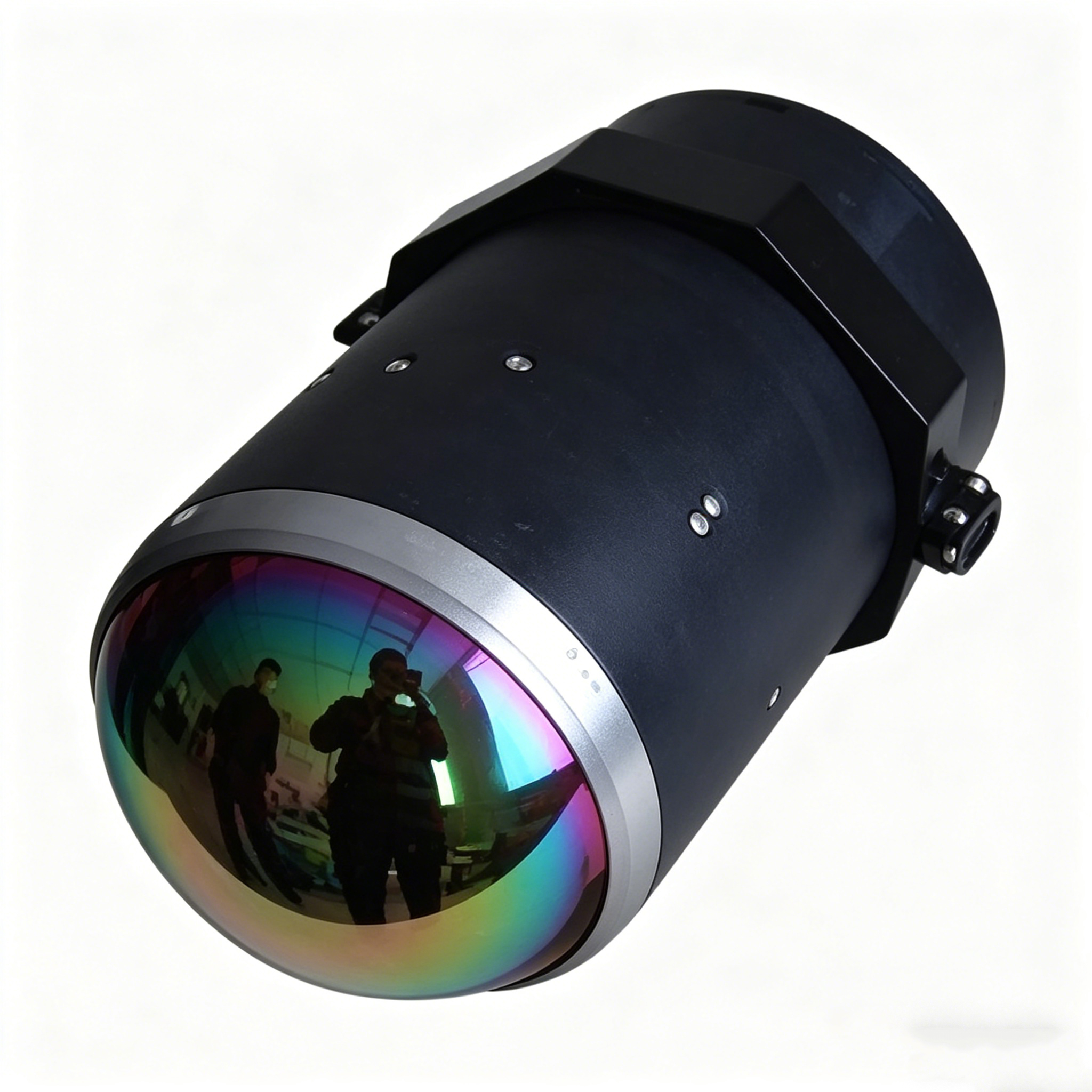

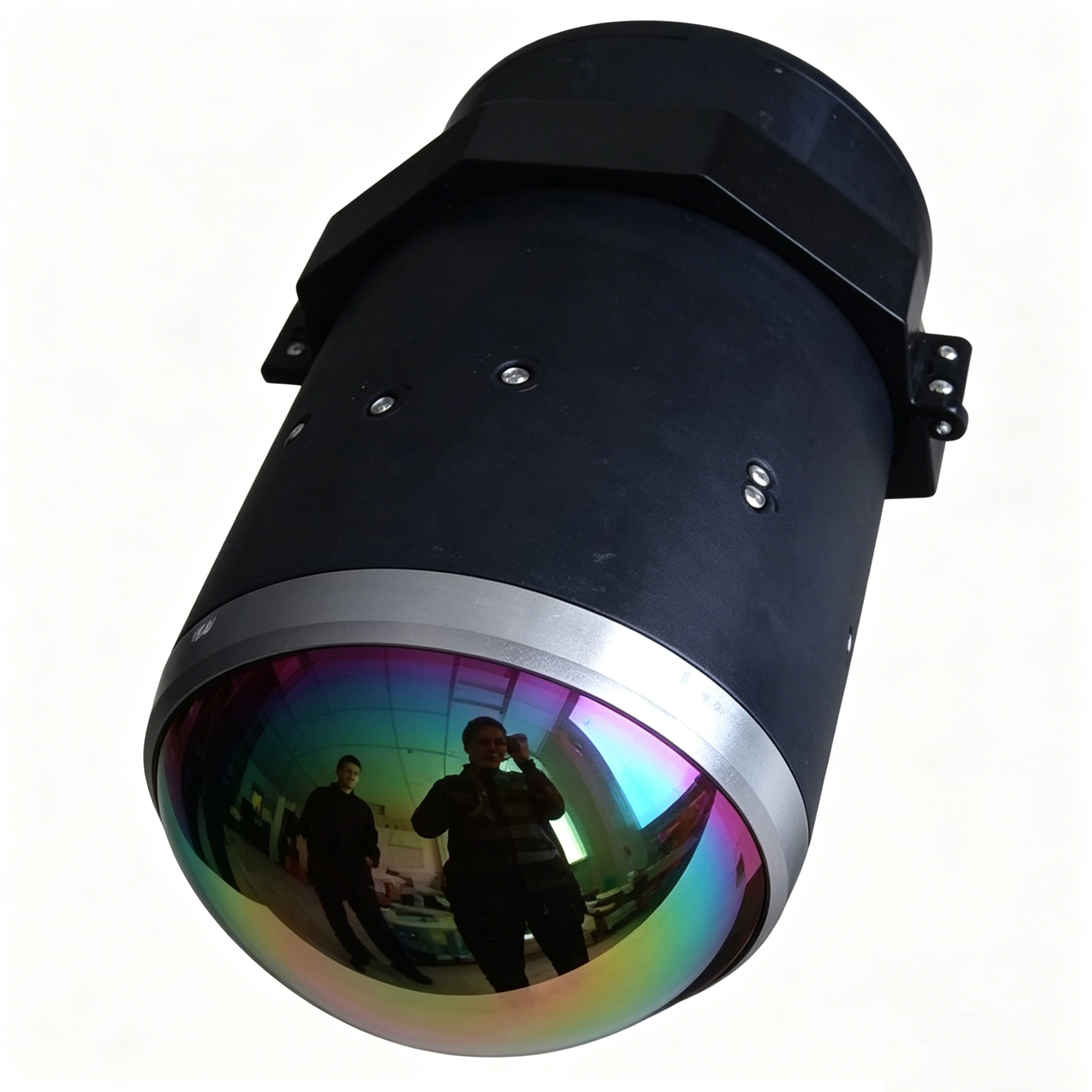

This gimbal-mounted uncooled infrared imaging seeker is an electro-optical guidance system based on thermal imaging technology, designed specifically for target detection and tracking. It captures infrared radiation emitted by targets and converts it into real-time image data, enabling precise tracking even under low-visibility or nighttime conditions.
Equipped with a 640×512 infrared detector, it delivers clear thermal images without the need for a complex cooling system.
Line-of-sight angular velocity accuracy of up to 0.05°/s (1σ) ensures precise tracking data.
Supports 25 Hz (PAL) and 30 Hz (CameraLink) output formats for easy system integration.
This tracker has a detection range of up to 2.5 kilometers (based on a 2.3 m × 2.3 m target with a 4K temperature difference) and is capable of medium-range thermal imaging detection and tracking.
| Product Name | Gimbal-mounted Uncooled Infrared Imaging Seeker |
|---|---|
|
Field of View |
5.2°×3.9° |
|
Image Resolution |
640 × 512 |
|
Frame Rate |
25Hz (PAL) / 30Hz (CameraLink) |
|
Tracking Range |
Pitch -22° ~ +5°, Yaw -20° ~ +20° |
|
Maximum Tracking Angular Velocity |
20°/s |
|
Tracking Accuracy |
0.1° |
|
Recognition Distance |
2.5 km |
|
Line-of-Sight Angular Velocity Accuracy |
0.05°/s (1σ) |
|
Isolation |
>2% |
|
Minimum Tracking Speed |
0.05°/s |
This infrared imaging seeker is suitable for systems requiring passive thermal detection and tracking.
It uses thermal imaging technology instead of visible light, so it can operate in darkness and in low-visibility environments.
Under standard test conditions, the identification range can reach up to 2.5 kilometers.
Yes. It supports tracking speeds of up to 20°/s with high accuracy.
