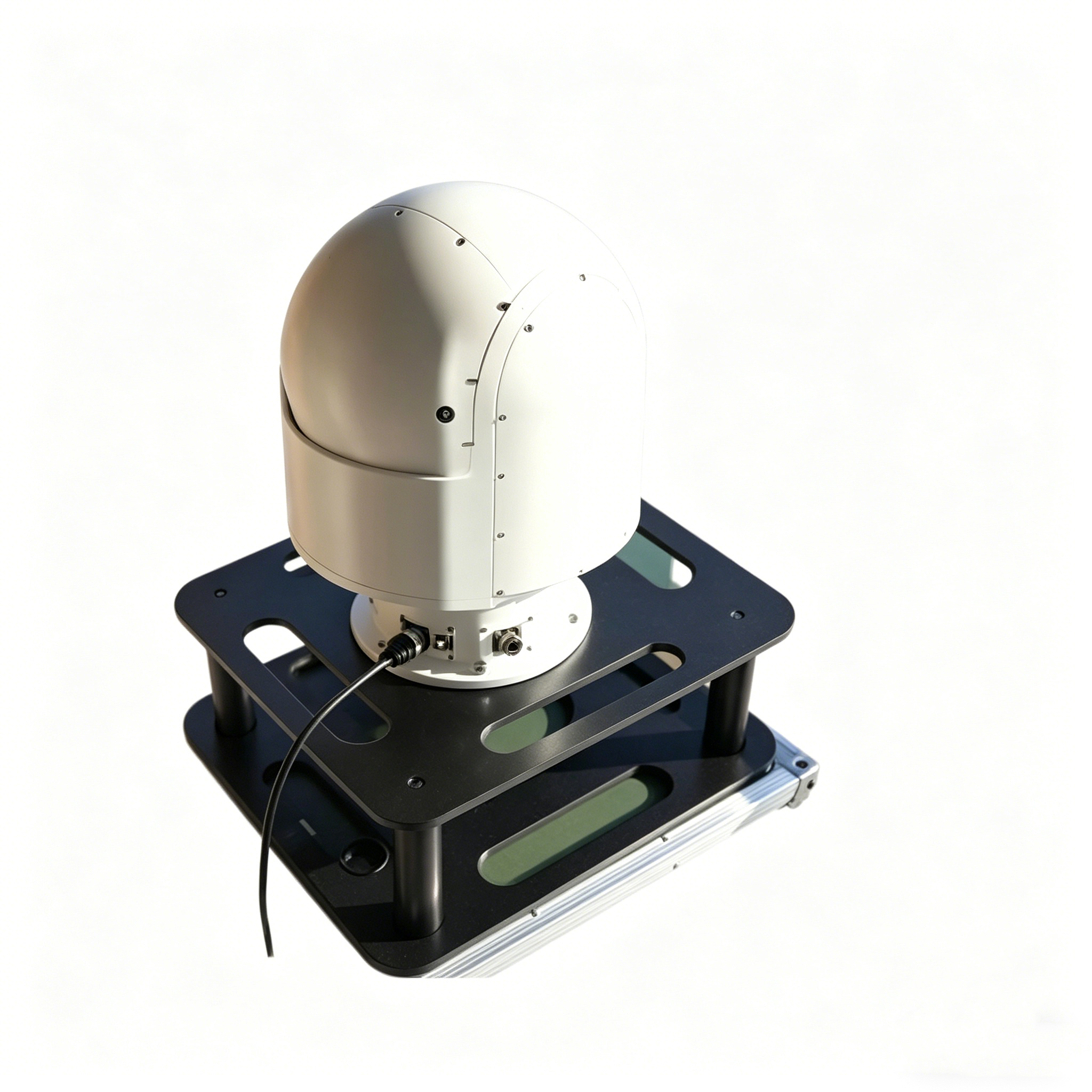

Name: Core Subsystem Seeker S-GD390 EO/IR turret
Brand: skycore
Availability: InStock
Rating: 5 (1 reviews)

Description

Core Subsystem Seeker S-GD390 EO/IR turret

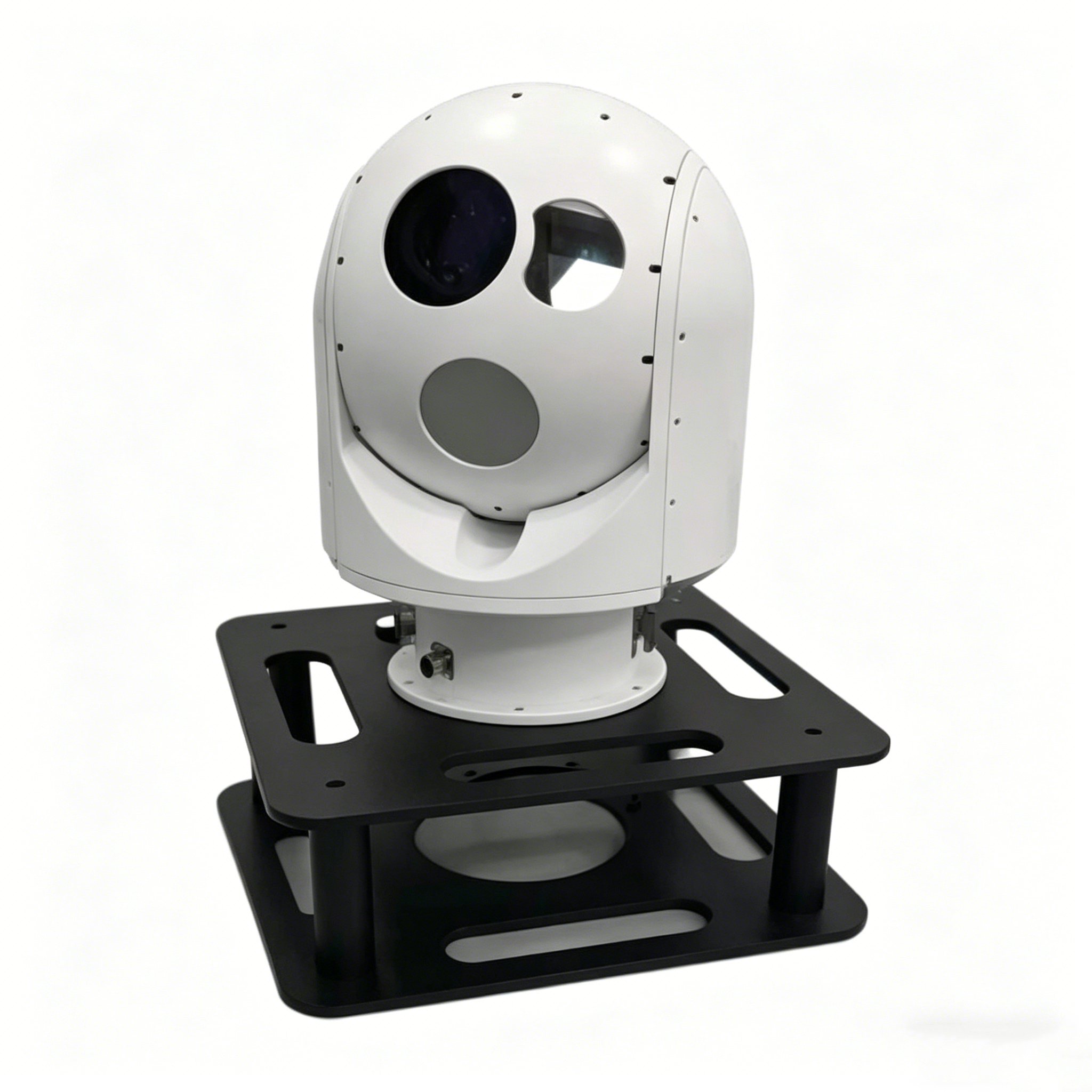

S-GD390 EO/IR turret is a combination of high-definition visible light camera, medium wave cooled IR camera, laser range finder, image tracker and servo stabilized platform. S-GD390 is designed for shipboard video capture, surface early warning, target surveillance, radar and EO/IR combined operation. It can detect, locate, track, identify and track targets under all weather at day and night. The maximum detection range is up to 15km for targets like small ship and reef.

Multi-sensor fusion (optical + infrared + laser ranging)
Long-range detection capability (up to 15 kilometers) All-weather, day-and-night operation
High-precision, stable tracking platform

Multi-Sensor Integrated Detection

Unlike single-sensor systems, the S-GD390 integrates visible light imaging, thermal imaging, and laser ranging technologies. This multi-sensor fusion technology enables precise detection, localization, and tracking of targets under a wide range of environmental conditions, including low-visibility and long-range scenarios.

The system can detect and track small maritime targets, such as vessels and reefs, at ranges of up to 15 kilometers.

High-Definition Visible Light Imaging

Equipped with a camera featuring a resolution of 1920×1080 and a variable focal length (21.7 mm to 550 mm), enabling visual identification at long distances.

Cooled Infrared Detection

Equipped with a 640×512 cooled infrared sensor with a pixel size of 15 microns, providing powerful thermal imaging detection performance even under low-visibility conditions.

Laser Ranging Capability

The integrated laser rangefinder supports a ranging distance of 50 meters to 15 kilometers, enhancing target positioning accuracy.

Designed for Long-Range Surveillance

The S-GD390 can detect targets at distances exceeding 15 kilometers (based on a target size of 6 m × 3 m × 3 m). Under similar conditions, the infrared channel offers a detection range of up to 8 kilometers, ensuring continuous surveillance capability.

With full 360° pan and a wide tilt range (-90° to +90°), the system provides comprehensive coverage for surveillance operations.

Specifications

Stabilized Platform
Product Name	S-GD390 EO/IR Turret
Azimuth Range	360° continuous
Pitch Range	-90° ~ +90°
Angular Velocity	≥100°/s
Angular Acceleration	≥150°/s²
Position Accuracy	≤0.3 mrad
Stabilization Accuracy	≤0.1 mrad
Visible Light Camera
Resolution	1920 × 1080
Focal Length	21.7 mm ~ 550 mm
Field of View	22.5° × 12.7° ~ 0.9° × 0.5°
Frame Rate	50 Hz
Recognition Distance	>15 km
Cooled IR Camera
Resolution	640 × 512
Pixel Size	15 μm
Focal Length	15 mm ~ 300 mm (continuous zoom)
Field of View	1.7° × 1.4° ~ 35.6° × 29°
Frame Rate	≥50 Hz
Recognition Distance	8 km
Laser Range Finder
Range	50 m ~ 15 km

Application Scenarios

The S-GD390 electro-optical/infrared turret is specifically designed for long-range surveillance and target tracking applications.

Shipborne monitoring and surveillance Coastal defense and surface target detection Radar and electro-optical/infrared integrated systems Critical infrastructure and perimeter security

FAQ

1.Why is the S-GD390 suitable for maritime use?

This device is designed for all-weather operation and features long-range detection and stable tracking capabilities, making it ideal for maritime environments.

2. What is the maximum detection range?

The visible light detection range can reach up to 15 kilometers, depending on the target size and environmental conditions.

3. Does it support nighttime operations?

Yes. The cooled infrared camera ensures effective performance at night and in low-visibility conditions.
